ATT JSC là đại lý cung cấp thiết bị của hãng Palmary tại Việt Nam. Chúng tôi có thể thực hiện tốt tất cả các công tác: cung cấp, lắp đặt, bảo trì, bảo hành cho thiết bị của hãng Palmary- Đài Loan.

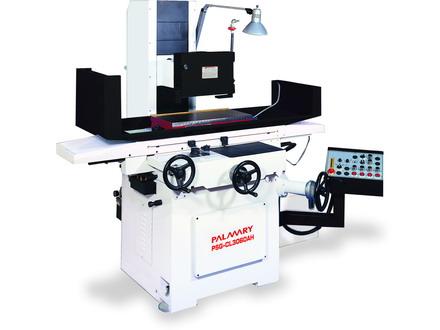

Máy mài phẳng: PSG-CS3060AH PSG-CL3060AH, PSG-DS3060AH PSG-DL3060AH, PSG-D4080AH
| Model | PSG-CS3060AH PSG-CL3060AH | PSG-DS3060AH PSG-DL3060AH | PSG-D4080AH |
| Working surface of table (mm) | 300 x 600 (12" x 24") | 300 x 600 (12" x 24") | 400 x 800 (16" x 32") |
| Max. table travel (mm) | 340 x 700 (13" x 27") | 340 x 700 (13" x 27") | 450 x 860 (18" x 34") |
| Max, surface ground (mm) | 300 x 600 (12" x 24") | 300 x 600 (12" x 24") | 400 x 800 (16" x 32") |
| Max, distance ceriter of spindle to table | 500 mm (20") [(Optional : 600 mm (24")] | 500 mm (20") [(Optional : 600 mm (24")] | 550 mm (22") |
| Table speed | 5 ~ 25 M/min (200" ~ 1000"/min) | 5 ~ 25 M/min (200" ~ 1000"/min) | 5 ~ 25 M/min (200" ~ 1000"/min) |
| Table guideway | V & Flat way | V & Flat way | V & Flat way |
| Atuo. Cross feed incerement approx, | 0.1 mm ~ 20 mm (0.004" ~ 0.8") | 0.1 mm ~ 20 mm (0.004" ~ 0.8") | 0.1 mm ~ 20 mm (0.004" ~ 0.8") |
| Rapid power cross feed (mm/min) approx, | 1100 mm/min (44"/min) (60Hz) 900 mm/min (36"/min) (50Hz) | 1100 mm/min (44"/min) (60Hz) 900 mm/min (36"/min) (50Hz) | 1100 mm/min (44"/min) (60Hz) 900 mm/min (36"/min) (50Hz) |
| Cross feed 1 rev on hand wheel 1 gra | 5 mm (0.2") 0.02 mm (0.001") | 5 mm (0.2") 0.02 mm (0.001") | 5 mm (0.2") 0.02 mm (0.001") |
| Rapid power head elevation 60Hz approx, (Option) 50Hz | 550 mm/min (13"/min) (60Hz) 450 mm/min (11"/min) (50Hz) | 550 mm/min (13"/min) (60Hz) 450 mm/min (11"/min) (50Hz) | 260 mm (13")/min 220 mm (11")/min |
| Vertical feed 1rev on hand wheel 1 gra | 2 mm (0.05") 0.01 mm (0.0002") | 2 mm (0.05") 0.005 mm (0.0001") | 2 mm (0.05") 0.01 mm (0.0002") |
| Vertical feed 1rev with M.P.G. 1gra | |||
| Auto, down feed (Option) | 0.001 mm ~ 0.999 mm/Time (0.0001" ~ 0.0999"/Time) (Option) | 0.001 mm ~ 0.999 mm/Time (0.0001" ~ 0.0999"/Time) (Option) | 0.001 mm ~ 0.999 mm/Time (0.0001" ~ 0.0999"/Time) (Option) |
| Wheel speed 60Hz/50Hz | 1750 R.P.M. (60Hz) / 1450 R.P.M. (50Hz) | 1750 R.P.M. (60Hz) / 1450 R.P.M. (50Hz) | 1750 R.P.M. (60Hz) / 1450 R.P.M. (50Hz) |
| Wheel dimension | S : 180 x 13 x 31.75 mm (7" x 0.5" x 1.25") L : 355 x 38 x 127 mm (14" x 1.5" x 5") | S : 180 x 13 x 31.75 mm (7" x 0.5" x 1.25") L : 355 x 38 x 127 mm (14" x 1.5" x 5") | 406 x 50 x 127 mm (16" x 2" x 5") |
| Spindle motor | 2HP (CS type) / 5HP (CL type) | 2HP (CS type) / 5HP (CL type) | 5HP |
| Hydrauilc pump motor | 1HP | 1HP | 2HP |
| Auto cross feed motor | 1/5 HP | 1/5 HP | 1/5 HP |
| Rapid heed elevation motor | 1/5 HP (Option) | 1/5 HP (Option) | 1/5 HP (Option) |
| Coolant pump | 1/8 HP (Option) | 1/8 HP (Option) | 1/8 HP (Option) |
| Sound pressure level | below 78dB (A) | below 78dB (A) | below 78dB (A) |
| Machine net weight kgs | 1700 (3740 Lbs) | 1700 (3740 Lbs) | 3250 (7150 Lbs) |
| Packing gross weight kgs | 1950 (4290 Lbs) | 1950 (4290 Lbs) | 3500 (7700 Lbs) |
| Machine floor space mm | 2600 x 1800 (102" x 68") | 2600 x 1800 (102" x 68") | 3450 x 2000 (136" x 79") |
| packing dimensions(L*W*H) cm | 228 x 179 x 210 (90" x 71" x 83") | 228 x 179 x 210 (90" x 71" x 83") | 276 x 228 x 215 (109" x 90" x 85") |
